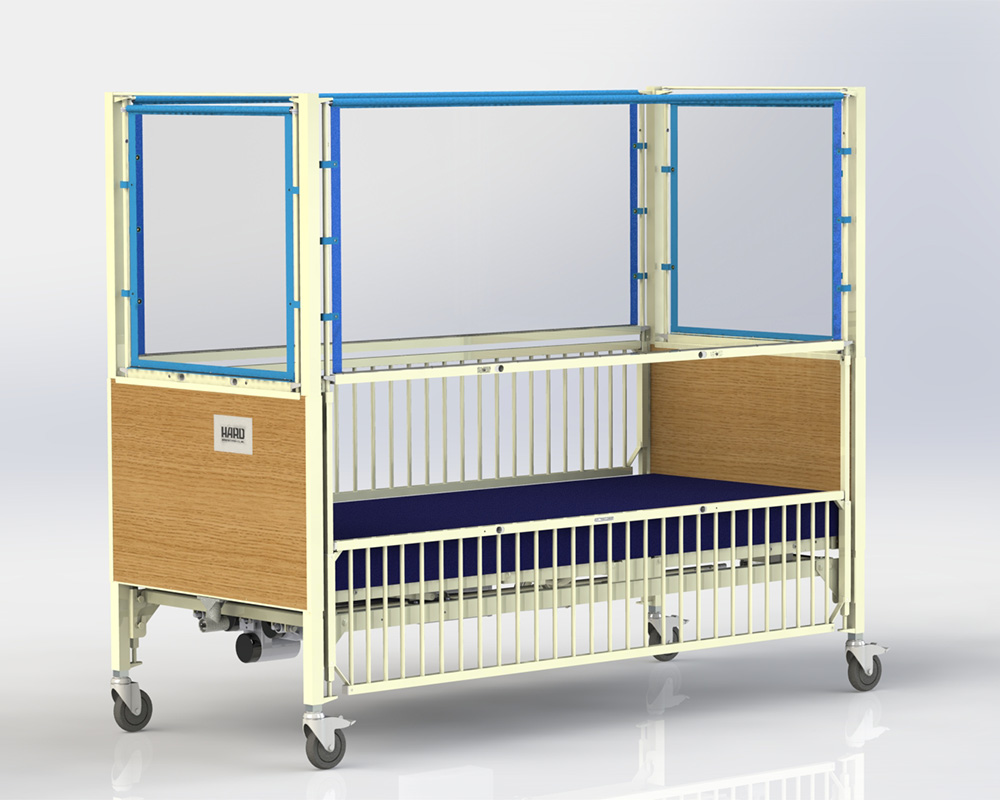

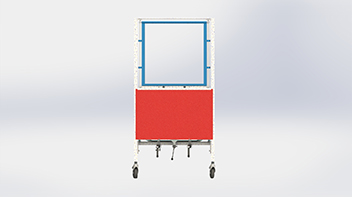

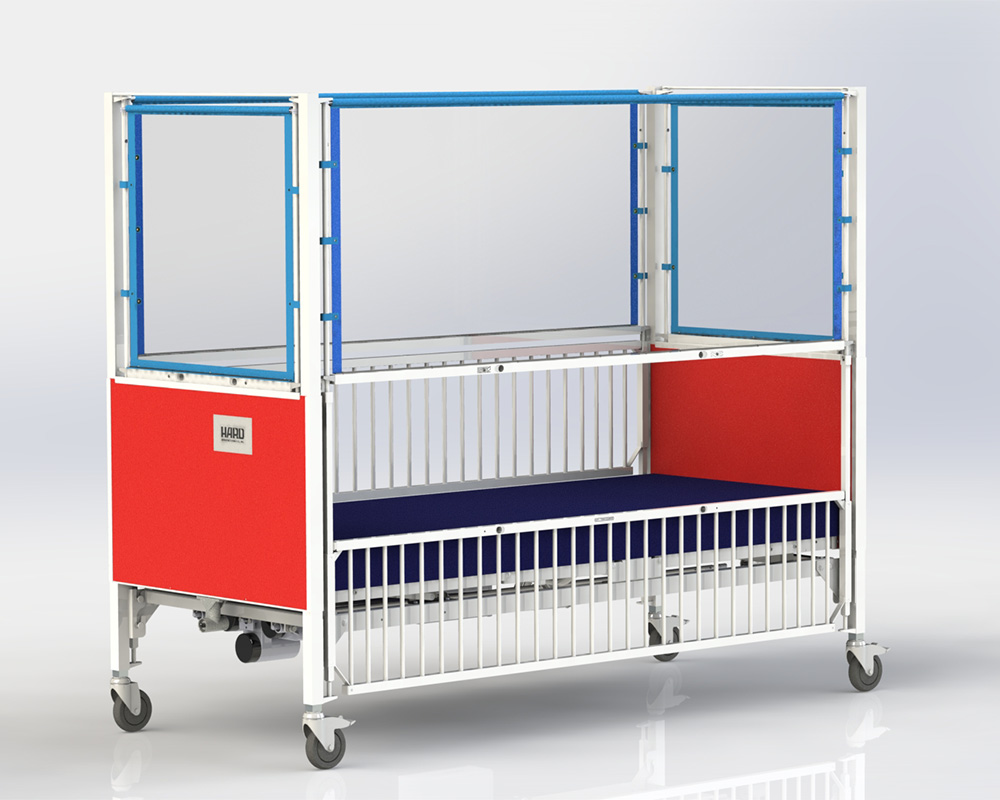

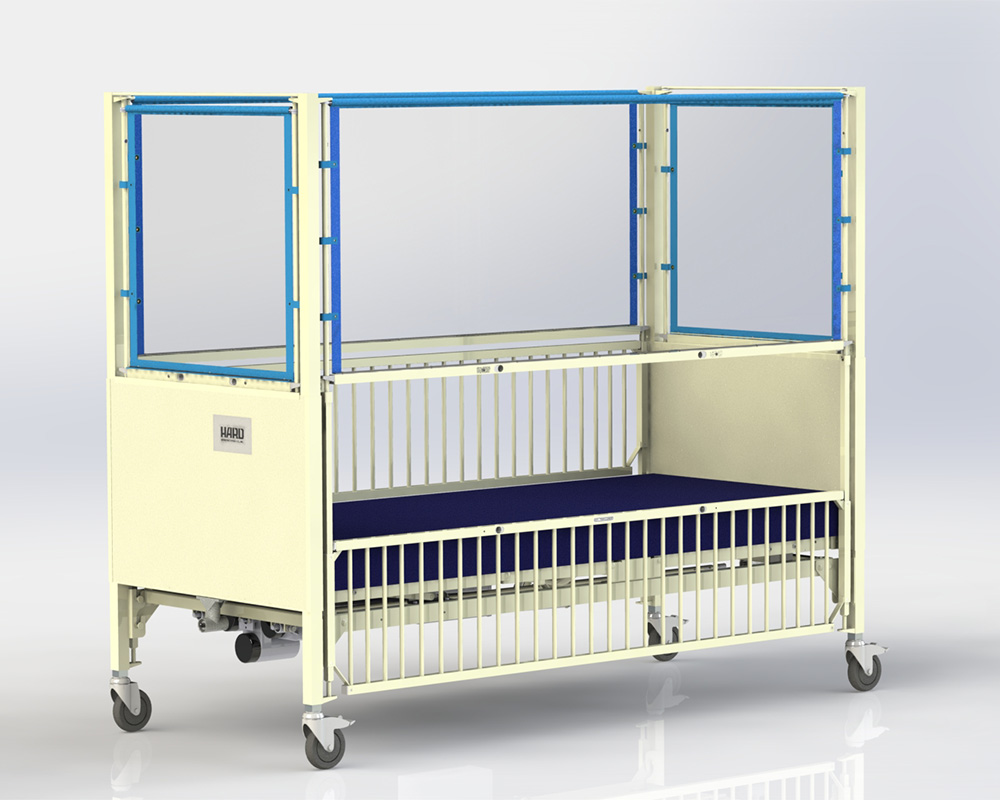

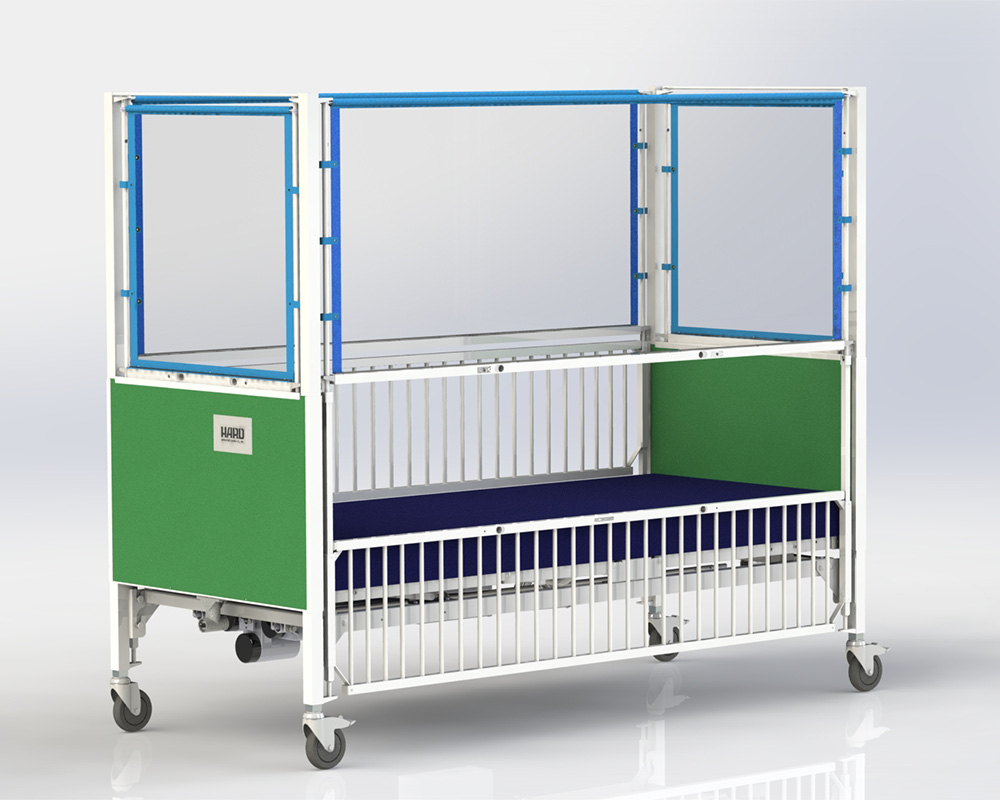

Monroe Bed
Recommended patient profile:Children weighing up to 150 lb (68 kg)
Our Monroe Youth Bed is designed for use by active pediatric patients who may be at risk of climbing out of bed. Featuring clear vinyl safety panels, this youth hospital bed provides a safeguard while allowing patients to view their surroundings.
Request a quotefeatures
- Manual or Electric Head & Knee Elevation
- Manual or Electric Hi-Lo System
- Foot End Staff Control Box - Electric Only
- 8" FlexShield™ Pressure Reduction Mattress
- Clear Vinyl Safety Panels - All 4 Sides
- Fingertip Release for Side Rails
- 5” Heavy Duty Casters (2 with brakes, 2 steer)
- Red/Yellow/Blue Laminate Panels on Ends
- Anti-Microbial Confetti Epoxy Finish
- Steel Construction
articulation
- Head/Foot Section: 40/35 degrees
Questions? Call 800-873-4273 (Domestic) or 716-893-1800 (International)

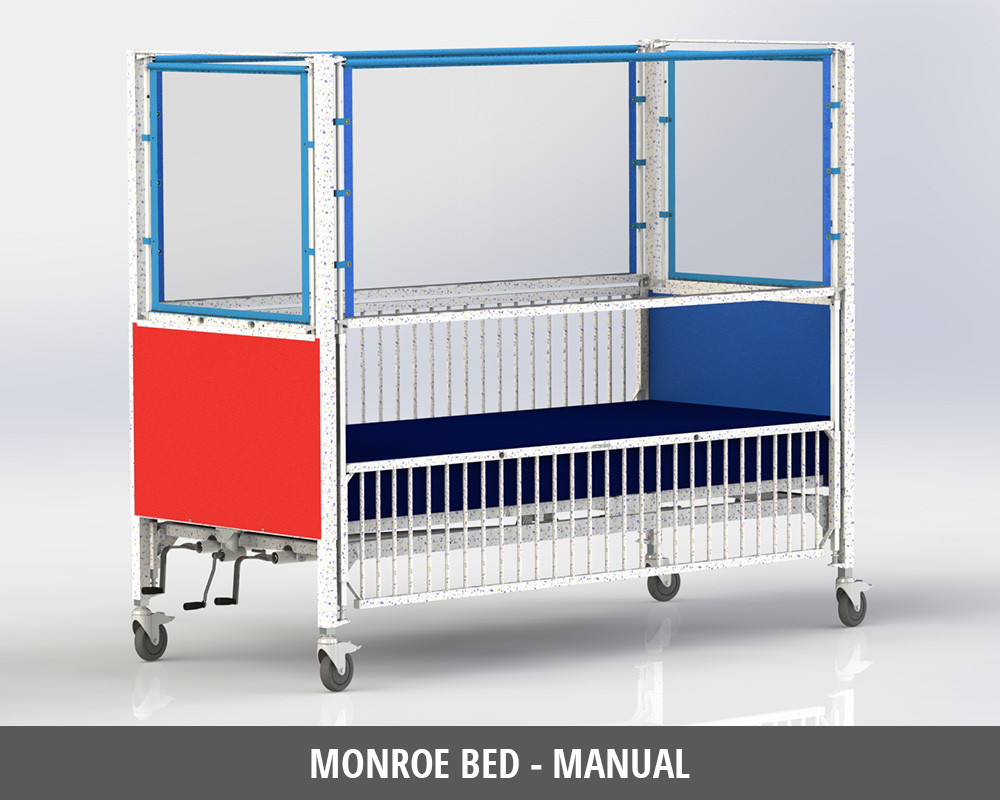

MONROE BED – MANUAL
The base model affords the opportunity to manually raise and lower the bed height as well as adjust head and knee articulation.

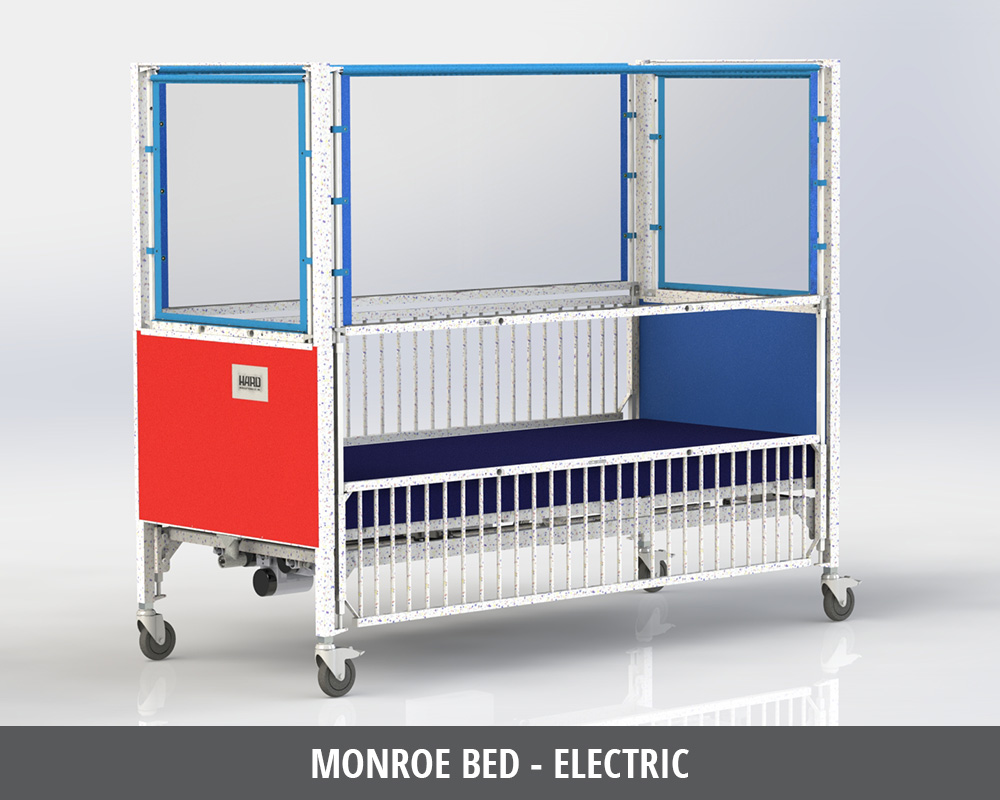

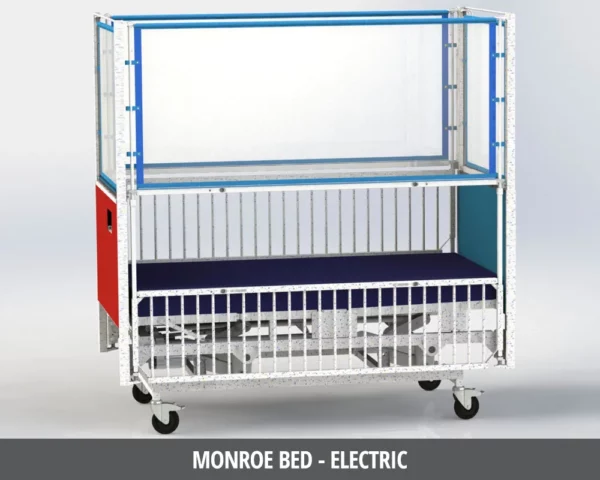

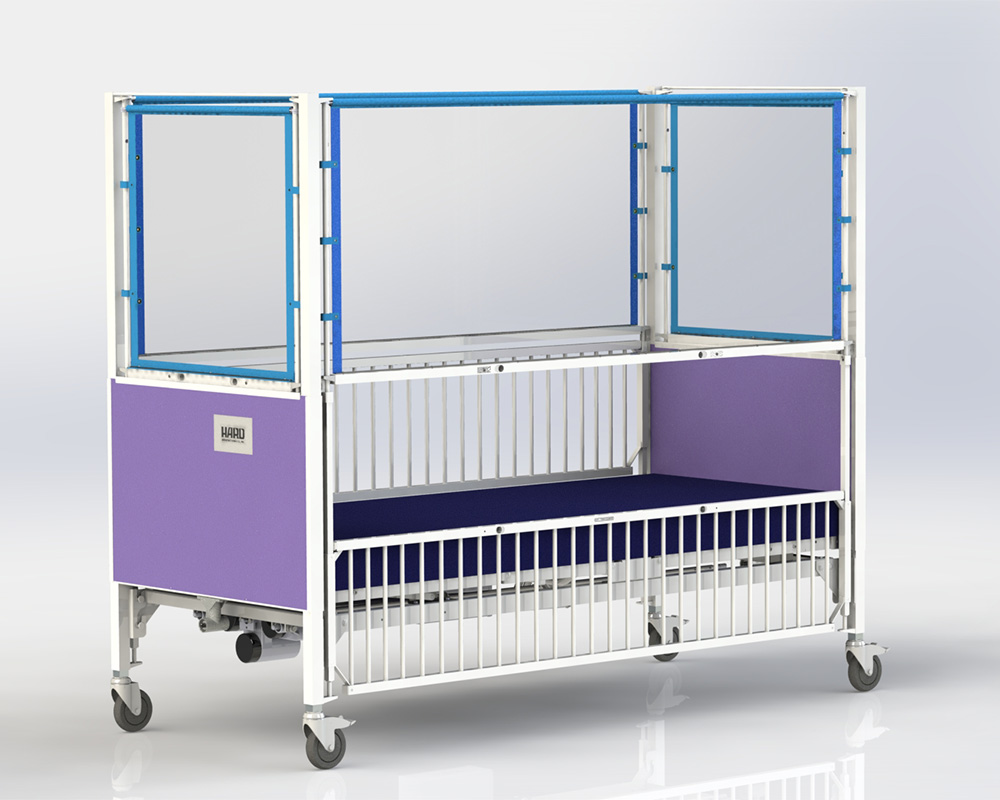

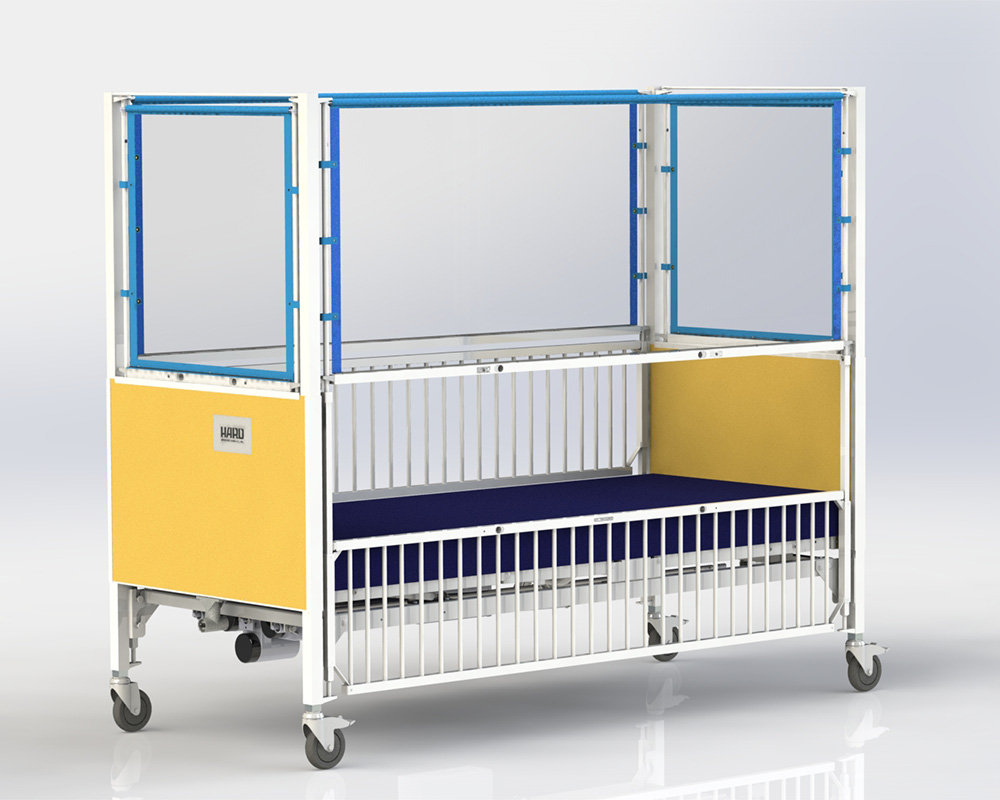

MONROE BED – ELECTRIC
The electric model features a nurse control panel for ease in adjusting the head, foot, and height of the bed to facilitate care for the patient.
Specifications
Monroe Bed - Manual
Model # | 1035MP | 2085MP | ||
---|---|---|---|---|
Bed Dimensions - Overall | 36 x 72 in | 36 x 83 in | ||
Mattress Size | 34 x 69 x 8 in | 34 x 80 x 8 in | ||
Overall Bed Height: Highest Position | 81 in | 81 in | ||
Overall Bed Height: Lowest Position | 71 in | 71 in | ||
Casters (2 with brakes, 2 steer) | 5 in | 5 in | ||
Floor to Top of Platform: Highest Position | 29 in | 29 in | ||
Floor to Top of Platform: Lowest Position | 19 in | 19 in | ||
Height of Side Rails and Vinyl Panels | 52 in | 52 in | ||
Weight | 375 lbs | 390 lbs |
Monroe Bed - Electric
Model # | 1030MP | 2070MP | ||
---|---|---|---|---|
Bed Dimensions - Overall | 36 x 72 in | 36 x 83 in | ||
Mattress Size | 34 x 69 x 8 in | 34 x 80 x 8 in | ||
Overall Bed Height: Highest Position | 81 in | 81 in | ||
Overall Bed Height: Lowest Position | 71 in | 71 in | ||
Casters (2 with brakes, 2 steer) | 5 in | 5 in | ||
Floor to Top of Platform: Highest Position | 29 in | 29 in | ||
Floor to Top of Platform: Lowest Position | 19 in | 19 in | ||
Height of Side Rails and Vinyl Panels | 52 in | 52 in | ||
Weight | 403 lbs | 419 lbs |
Monroe Bed - Manual
Model # | 1035MP | 2085MP | ||
---|---|---|---|---|
Bed Dimensions - Overall | 91 x 183 cm | 91 x 211 cm | ||
Mattress Size | 86 x 175 x 20 cm | 86 x 203 x 20 cm | ||
Overall Bed Height: Highest Position | 206 cm | 206 cm | ||
Overall Bed Height: Lowest Position | 180 cm | 180 cm | ||
Casters (2 with brakes, 2 steer) | 13 cm | 13 cm | ||
Floor to Top of Platform: Highest Position | 74 cm | 74 cm | ||
Floor to Top of Platform: Lowest Position | 48 cm | 48 cm | ||
Height of Side Rails and Vinyl Panels | 132 cm | 132 cm | ||
Weight | 170.1 kgs | 176.9 kgs |
Monroe Bed - Electric
Model # | 1030MP | 2070MP | ||
---|---|---|---|---|
Bed Dimensions - Overall | 91 x 183 cm | 91 x 211 cm | ||
Mattress Size | 86 x 175 x 20 cm | 86 x 203 x 20 cm | ||
Overall Bed Height: Highest Position | 206 cm | 206 cm | ||
Overall Bed Height: Lowest Position | 180 cm | 180 cm | ||
Casters (2 with brakes, 2 steer) | 13 cm | 13 cm | ||
Floor to Top of Platform: Highest Position | 74 cm | 74 cm | ||
Floor to Top of Platform: Lowest Position | 48 cm | 48 cm | ||
Height of Side Rails and Vinyl Panels | 132 cm | 132 cm | ||
Weight | 182.8 kgs | 190.1 kgs |
