Springfield Procedural Crib

Recommended patient profile:
Up to Four years of age – Weighing up to 150 lb (68 kg)

Designed for patient comfort and accessibility, our Springfield Procedural Crib allows for all four sides to drop down just below the mattress for full access to the patient by multiple caregivers.

In addition to the crib’s rails, an Add-on Top made of clear vinyl safety panels on all four sides of crib, the crib gives an added layer of safety for active patients.

Request a quote
features
  • Manual Head & Knee Elevation
  • 5" FlexShield™ Pressure Reduction Mattress
  • Drop Head & Foot End Rails
  • E-Z Lift Sides
  • Add-on Crib Top with Clear Vinyl Safety Panels - All 4 sides
  • IV Pole
  • Shelf with Oxygen Tank Cut Outs
  • 5” Heavy Duty Casters (2 with brakes, 2 steer)
  • Wall Bumper System
  • Teething Bars
  • Anti-Microbial Confetti Epoxy Finish
  • Steel Construction
options
  • Manual Hi-Lo System
  • Electric Hi-Lo System
  • Battery Backup (Electric only)
  • CPR Release (Electric only)
  • Trendelenburg Feature (Electric only)
  • WeighSafe Scale
  • Vinyl Top Ceiling Panel
  • Portland Access or Dialysis Access
  • Additional IV Pole - Up to 3
  • Additional Epoxy Colors Available
  • Stainless Steel
  • Fitted Sheets
articulation
  • Head/Foot Section: 35/15 degrees
Springfield Video

Questions? Call 800-873-4273 (Domestic) or 716-893-1800 (International)

Springfield Procedural Crib

The base model features a fixed height platform, with manually adjustable head and knee articulation.

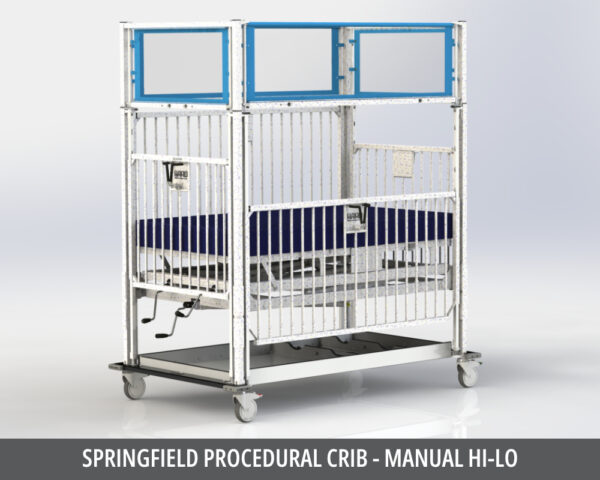

Springfield Procedural Crib - Manual Hi-Lo

The manual hi-lo model provides full manual mobility with hi-lo capabilities as well as head and knee elevation. These features facilitate easier access the patient by the care delivery team.

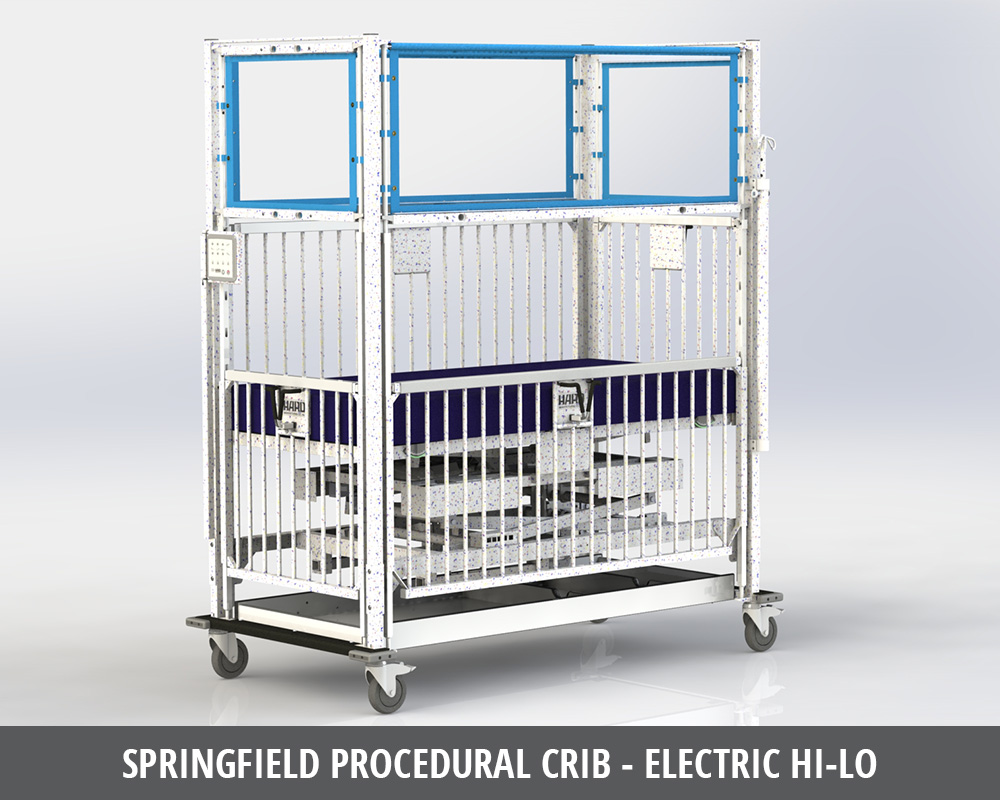

Springfield Procedural Crib - Electric Hi-Lo

Our fully electric model, featuring state-of-the-art linear actuators, provides for maximum ease of use in caring for the patient. The crib features a nurse control panel for easy adjustments of the crib head, foot and height as well as an emergency CPR function and battery backup option.

Specifications

Springfield Procedural Crib

Model # 943 955
Crib Dimensions - Overall without Bumpers 30 x 60 in 36 x 60 in
Crib Dimensions - Overall with Bumpers 35 x 65 in 41 x 65 in
Mattress Size 28 x 58 x 5 in 34 x 58 x 5 in
Casters (2 with brakes, 2 steer) 5 in 5 in
Overall Crib Height 75 in 75 in
Floor to Top of Platform 31 in 31 in
Height of Side Rails 26 in 26 in
Height of Add-On Crib Top 17 in 17 in
Weight 255 lbs 273 lbs
Download as a pdf

Springfield Procedural Crib - Manual Hi-Lo

Model # 843 855
Crib Dimensions - Overall without Bumpers 30 x 60 in 36 x 60 in
Crib Dimensions - Overall with Bumpers 35 x 65 in 41 x 65 in
Mattress Size 28 x 58 x 5 in 34 x 58 x 5 in
Casters (2 with brakes, 2 steer) 5 in 5 in
Overall Crib Height 75 in 75 in
Floor to Top of Platform: Highest Position 41 in 41 in
Floor to Top of Platform: Lowest Position 31 in 31 in
Height of Sides 26 in 26 in
Height of Add-On Crib Top 17 in 17 in
Weight 325 lbs 347 lbs
Download as a pdf

Springfield Procedural Crib - Electric Hi-Lo

Model # 743 755
Crib Dimensions - Overall without Bumpers 30 x 60 in 36 x 60 in
Crib Dimensions - Overall with Bumpers 35 x 65 in 41 x 65 in
Mattress Size 28 x 58 x 5 in 34 x 58 x 5 in
Casters (2 with brakes, 2 steer) 5 in 5 in
Overall Crib Height 75 in 75 in
Floor to Top of Platform: Highest Position 44 in 44 in
Floor to Top of Platform: Lowest Position 32 in 32 in
Height of Sides 26 in 26 in
Height of Add-On Crib Top 17 in 17 in
Weight 357 lbs 374 lbs
Download as a pdf

Springfield Procedural Crib

Model # 943 955
Crib Dimensions - Overall without Bumpers 76 x 152 cm 91 x 152 cm
Crib Dimensions - Overall with Bumpers 89 x 165 cm 104 x 165 cm
Mattress Size 71 x 147 x 13 cm 86 x 147 x 13 cm
Casters (2 with brakes, 2 steer) 13 cm 13 cm
Overall Crib Height 191 cm 191 cm
Floor to Top of Platform 79 cm 79 cm
Height of Side Rails 66 cm 66 cm
Height of Add-On Crib Top 43 cm 43 cm
Weight 115.7 kgs 123.8 kgs

Springfield Procedural Crib - Manual Hi-Lo

Model # 843 855
Crib Dimensions - Overall without Bumpers 76 x 152 cm 91 x 152 cm
Crib Dimensions - Overall with Bumpers 89 x 165 cm 104 x 165 cm
Mattress Size 71 x 147 x 13 cm 86 x 147 x 13 cm
Casters (2 with brakes, 2 steer) 13 cm 13 cm
Overall Crib Height 191 cm 191 cm
Floor to Top of Platform: Highest Position 104 cm 104 cm
Floor to Top of Platform: Lowest Position 79 cm 79 cm
Height of Sides 66 cm 66 cm
Height of Add-On Crib Top 43 cm 43 cm
Weight 147.4 kgs 157.4 kgs

Springfield Procedural Crib - Electric Hi-Lo

Model # 743 755
Crib Dimensions - Overall without Bumpers 76 x 152 cm 91 x 152 cm
Crib Dimensions - Overall with Bumpers 89 x 165 cm 104 x 165 cm
Mattress Size 71 x 147 x 13 cm 86 x 147 x 13 cm
Casters (2 with brakes, 2 steer) 13 cm 13 cm
Overall Crib Height 191 cm 191 cm
Floor to Top of Platform: Highest Position 112 cm 112 cm
Floor to Top of Platform: Lowest Position 81 cm 81 cm
Height of Sides 66 cm 66 cm
Height of Add-On Crib Top 43 cm 43 cm
Weight 161.9 kgs 169.6 kgs
